42 9469372990 Rev B
DGC-2020HD
P0071-62
120 ohm
Termination
CAN-H
CAN-L
CEM-2020
(Optional,
up to 4)
120 ohm
Termination
CAN 2 Bus
Stub
AEM-2020
(Optional,
up to 4)
Other
Devices
Engine
120 ohm
Termination
CAN-H
CAN-L
120 ohm
Termination
CAN 1 Bus
Stub
CAN 2
CAN 1

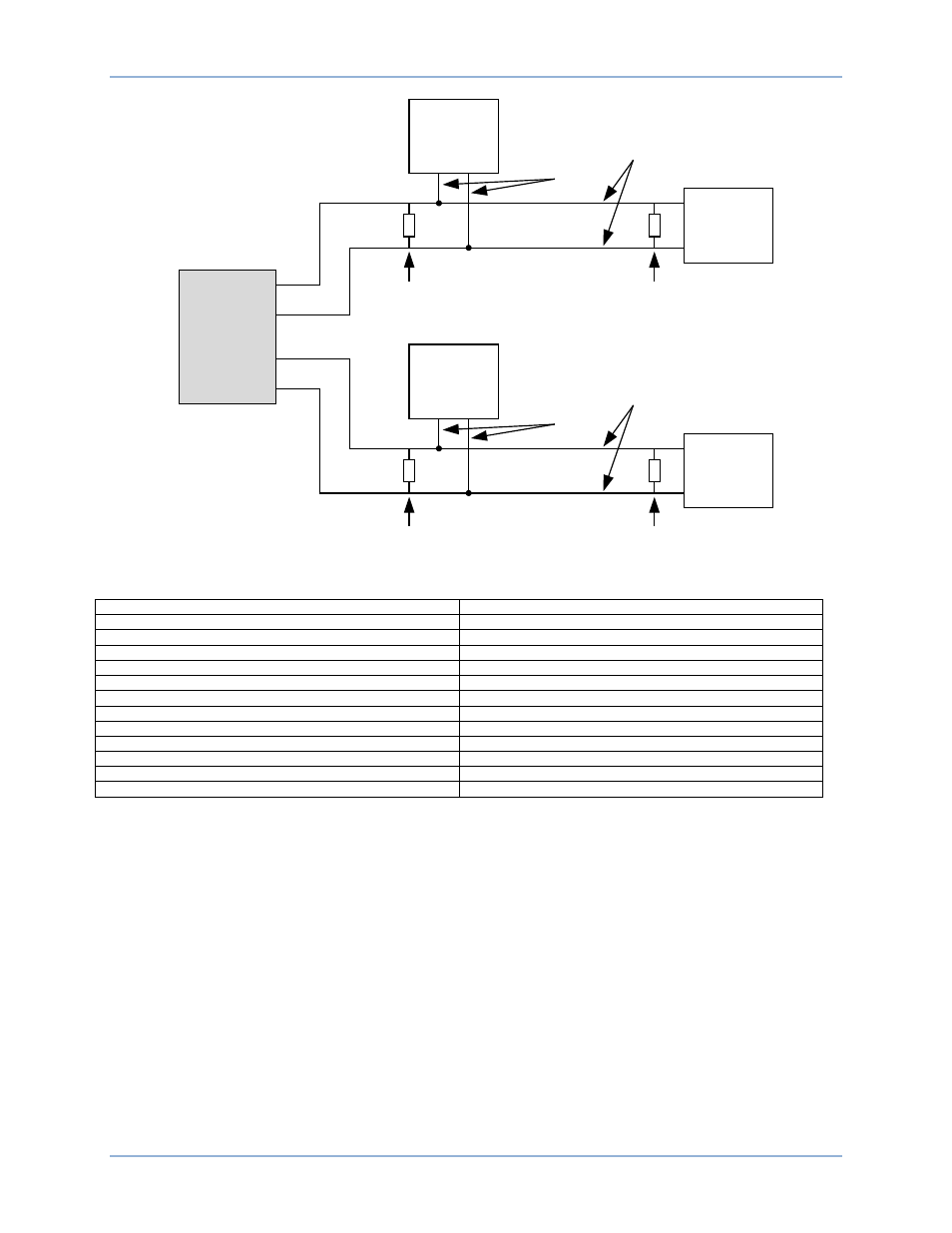

Figura 11. Interfaz CAN con un dispositivo DGC-2020HD que proporciona un extremo del bus
English Español
CAN 1 CAN 1
CEM-2020 (Optional, up to 4) CEM-2020 (opcional, hasta 4)
120 ohm Termination Terminación de 120 ohm
Other Devices Otros dispositivos
120 ohm Termination Terminación de 120 ohm
Stub Adaptador
CAN-H CAN-A
CAN-L CAN-B
CAN 2 Bus Bus de CAN 2
120 ohm Termination Terminación de 120 ohm
AEM-2020 (Optional, up to 4) AEM-2020 (opcional, hasta 4)
Engine Motor
Conexiones Tipicas DGC-2020HD
