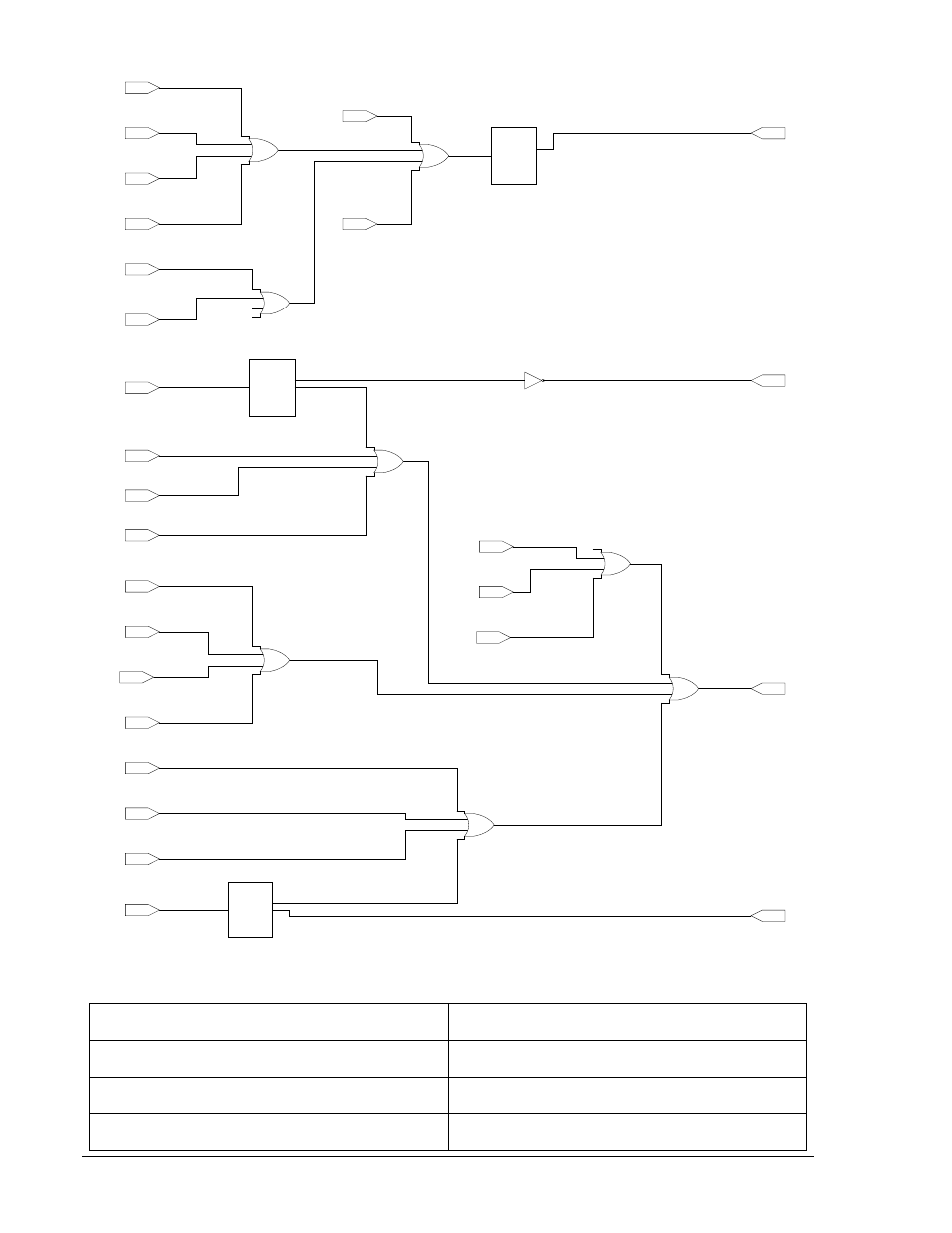

Figura A-5. DECS-400 simple con PSS (Parte 3 de 3)
OEL Active
(Input Buffer) OEL activo
(Búfer de entrada)
UEL Active
(Input Buffer) UEL activo
(Búfer de entrada)
SCL Active
(Input Buffer) SCL activo
(Búfer de entrada)
V/Hz Limiter Active
(Input Buffer) Limitador V/Hz activo
(Búfer de entrada)
OEL Active
(Input Buffer)
Output Relay #3
Common Limiter(s)
(Output Buffer)
Transfer to FCR on
Loss of Sensing
Enable
(Output Buffer)
Relay Output #4
Loss of Sensing
(Output Buffer)
Layer 1
Gate 01
UEL Active
(Input Buffer)
SCL Active
(Input Buffer)
V/Hz Limiter Active
(Input Buffer)
Layer 1
Gate 02
Setpoint Adjustment
High Limit
(Input Buffer)
Setpoint Adjustment
Low Limit
(Input Buffer)
Underfrequency
Active
(Input Buffer)
u 2
u 3
u 4
u 1
x 1
MUX
u 4 u 4
Generator Overvoltage
Active
(Input Buffer)
Layer 1
Gate 05
Generator Undervoltage
Active
(Input Buffer)
Loss of Field
Active
(Input Buffer)
V/Hz Protection
Active
(Input Buffer)
Loss of Isolation Module
Active
(Input Buffer)
Layer 1
Gate 04
Failed to Build Up
Active
(Input Buffer)
EDM Open Active
(Input Buffer)
EDM Shorted Active
(Input Buffer)
Field Overtemperature
Active
(Input Buffer)
Layer 1
Gate 06
Field Overvoltage
Active
(Input Buffer)
Field Overcurrent
Active
(Input Buffer)
u 2
u 3
u 4
u 1
x 1
MUX
u 4 u 4
Layer 1
Gate 04
u 2
u 3
u 4
u 1
x 1
MUX
u 4 u 4
Relay Output #2
Common Protection
(Output Buffer)
Layer 2
Gate 02
Layer 2
Gate 03
Layer 1
Gate 03
Layer 1
Gate 04
Layer 1
Gate 03
PSS Voltage Limiter
Active
(Input Buffer)
Layer 2
Gate 01
PSS Voltage Unbalance
Active
(Input Buffer)
PSS Current Unbalance
Active
(Input Buffer)
PSS Speed Failure
Active
(Input Buffer)
Loss of Sensing
Active
(Input Buffer)
P0036-07
A-12 Lógica programable del DECS-400 9369772990 Rev R
