Powermax30 XP Manual de servicio 808153

206

9 – Diagramas eléctricos

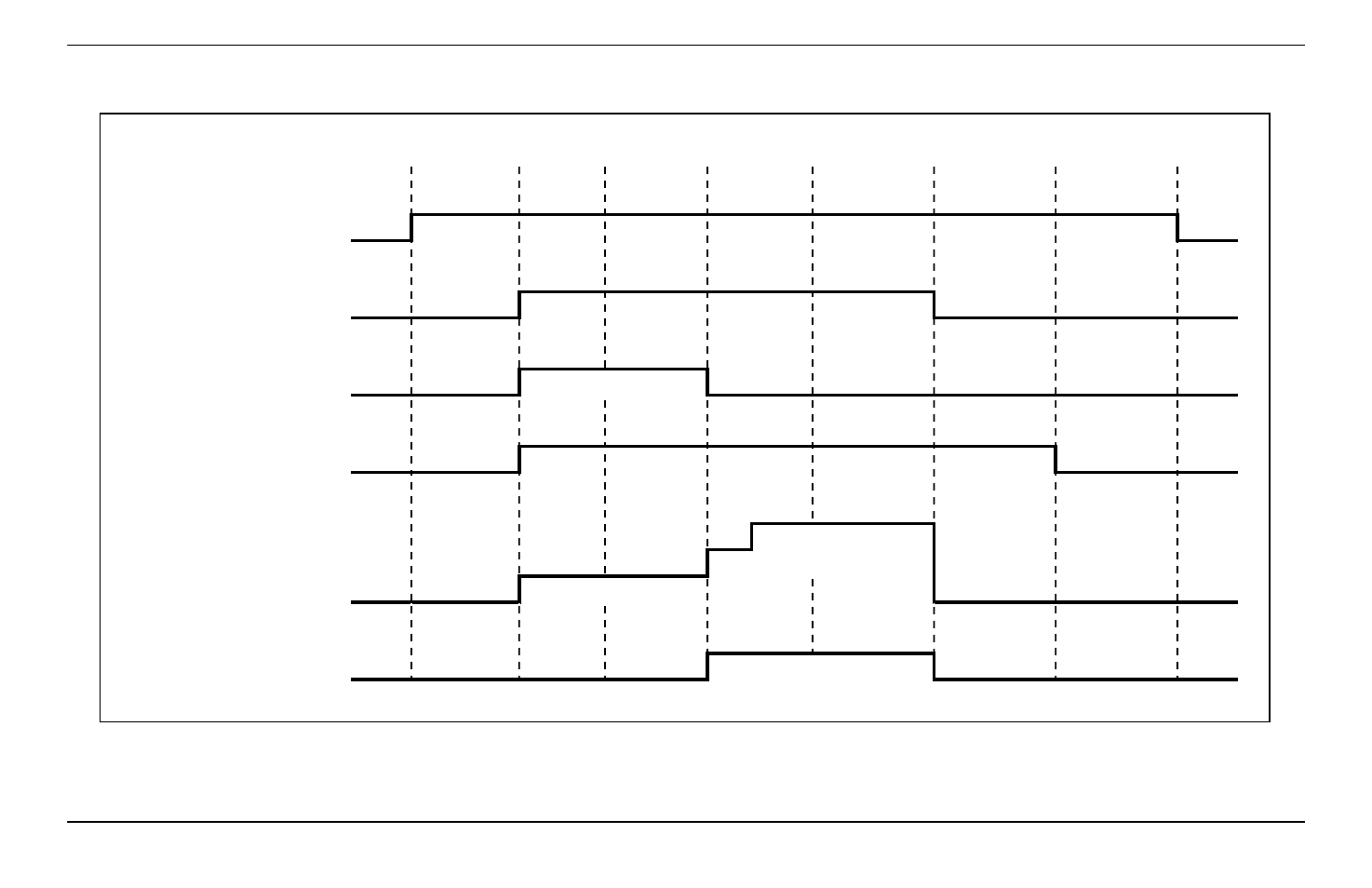

Gráfico tiempo genérico Powermax

Maximum 5 seconds

User set current

Transfer PA current

Pilot arc current

Transfer threshold: 1.6 A

Pilot arc

Transfer

Steady state

Loss of start

Inverter output on

Transfer relay and LED on

Idle

Power off

Post flow

Power/Aux switch closed

Start LED on

Pilot arc IGBT gated

Gas control device LED on

Power up

Start
