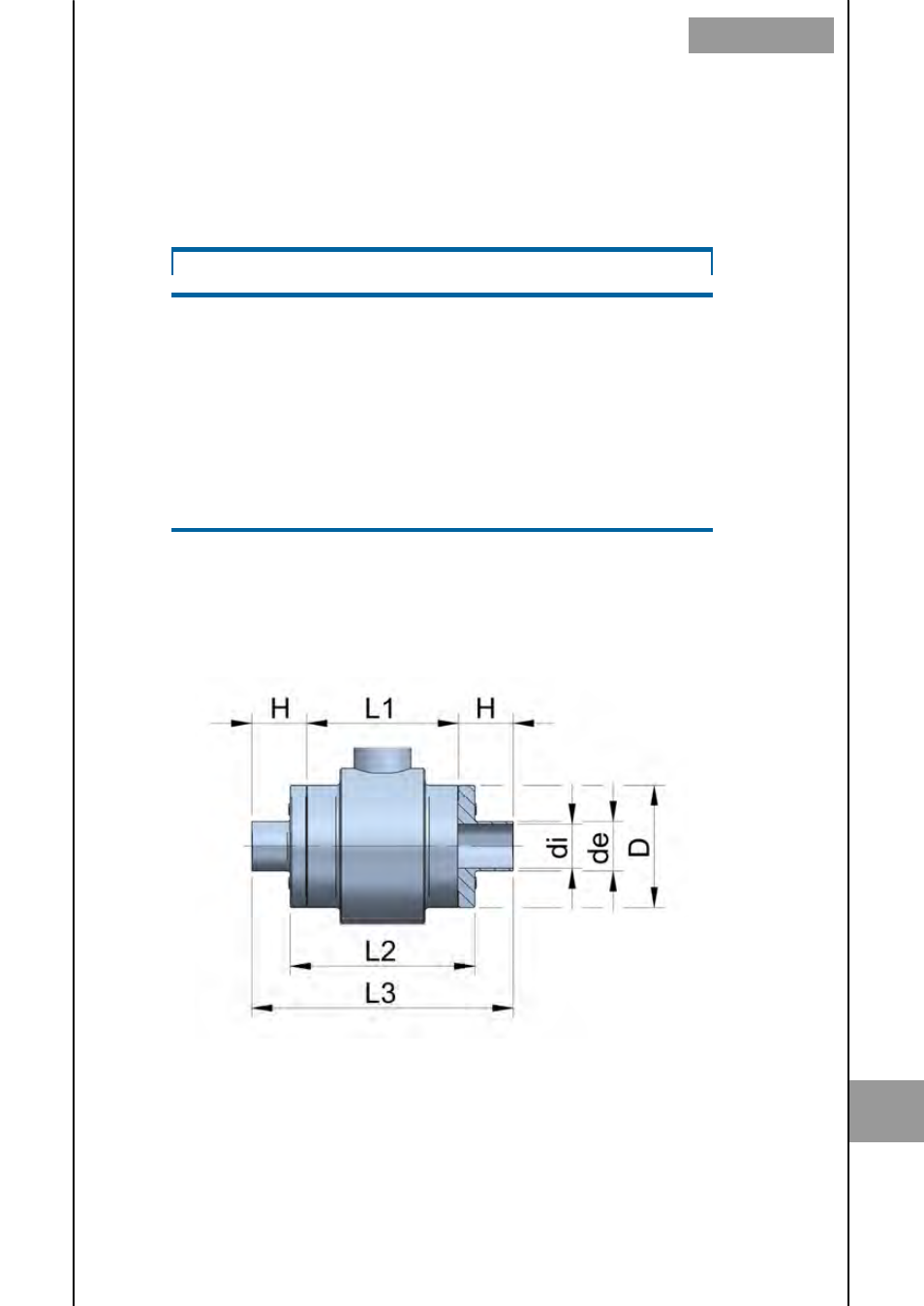

DIMENSIONES
FLOMID-9WDFX (DIN 11850 conexiones weld-on)
DN de* di D L1 L2 L3 H
10 13 10 60 104 120 180 38
15 19 16 65 104 120 180 38
20 23 20 70 104 120 180 38
25 29 26 80 110 134 190 40
32 35 32 90 110 134 190 40
40 41 38 100 130 154 210 40
50 53 50 115 130 154 210 40
65 70 66 145 160 186 250 45
80 85 81 160 160 186 250 45
100 104 100 180 204 234 300 48
