DIMENSIONES

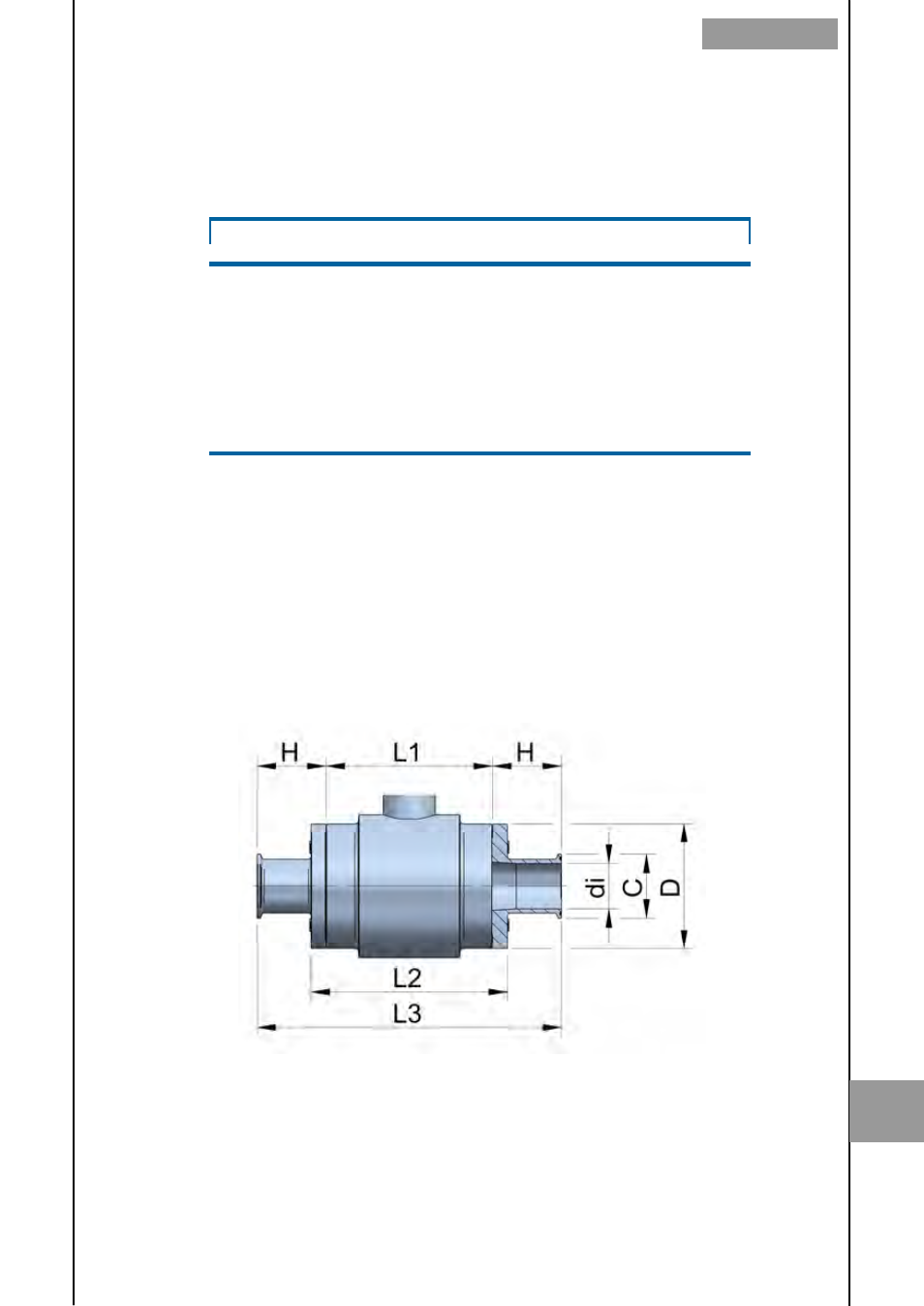

FLOMID-5TFX (TRI-CLAMP®)
DN Coup. OD* di C D L1 L2 L3 H
10 ½" 12.7 9.4 25.0 60 104 120 200 48
15 ¾" 19.0 15.7 25.0 65 104 120 200 48
25
1" 25.4 22.1 50.4 80 110 134 220 55
40 1½" 38.1 34.8 50.4 100 130 154 240 55
50 2" 50.8 47.5 63.9 115 130 154 240 55
65 2½" 63.5 60.2 77.4 145 160 186 280 60
80 3" 76.2 72.9 90.9 160 160 186 280 60
100 4" 101.6 97.4 118.9 180 204 234 330 63
* OD = diámetro exterior según ASME BPE DT-1
