APÉNDICE A
21
HySpeed HT2000 Manual de Instrucciones a-5
Lista de piezas filtro EMI
Ref. Número Descripción Cantidad
001557 Cover:Hyspeed HT2000-CE Electronic Filter Enclosure 1
1 001558 Enclosure:Hyspeed HT2000-CE Electronic Filter 1
2 001559 Cover:Hyspeed HT2000-CE Top 1
3 008489 Bushing:1.97 ID X 2.5 Hole Black-Snap 1
4 008610 Strain Relief:1-1/2NPT 1.5ID 2-Screw 1
5 029316 TB1 Input-Power SA:200/2000/4X00/HD 1
6 109036 Filter:60A 440VAC 3PH 2-Stage Electronic 1
7 109040 Filter Mounting Bracket for 109036 1

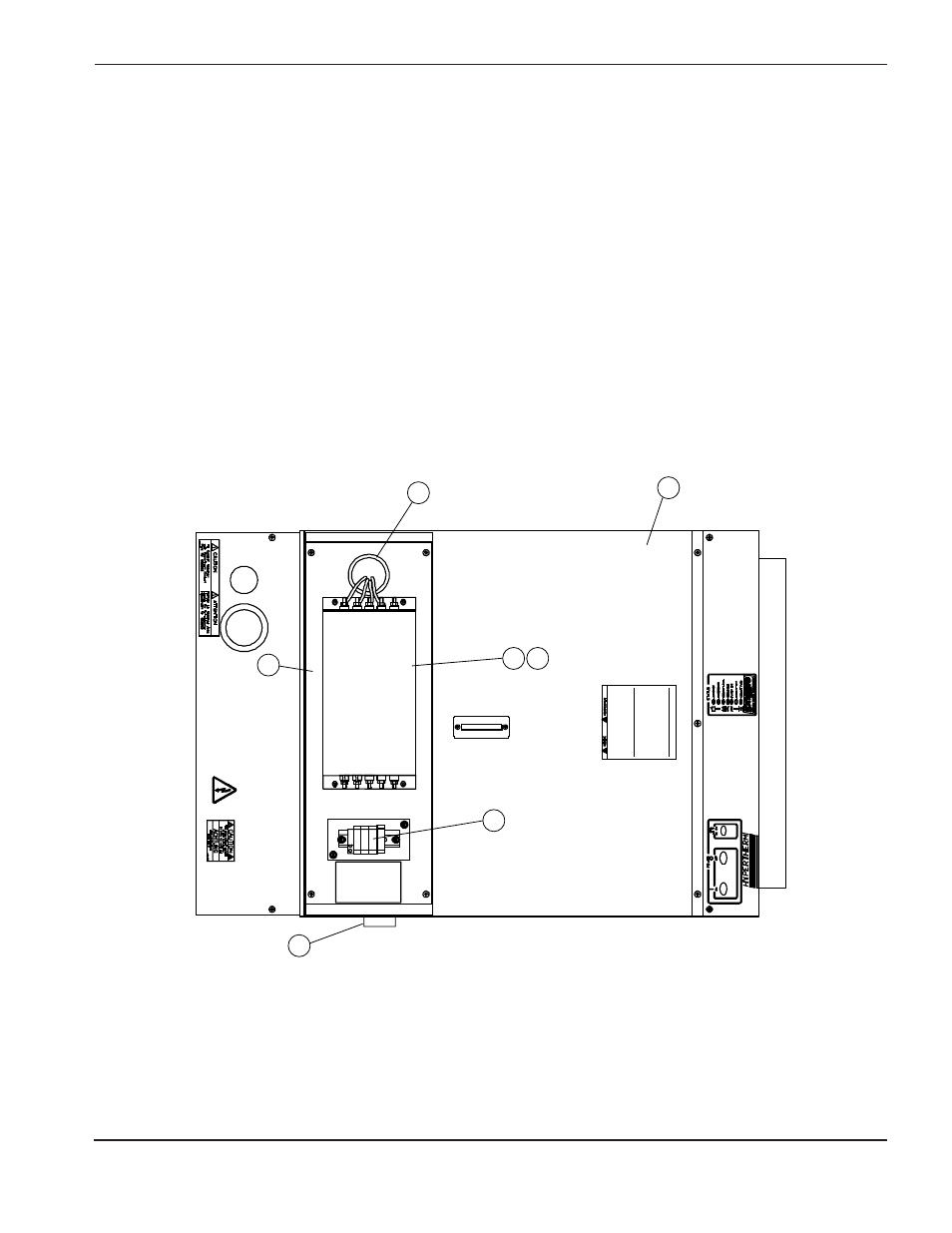

Figura a-4 Piezas para filtro EMI HT2000
1
3
2
4
5
6 7
