User’s Manual—SNAP™ 500 Printer 105
Cables de conexiones

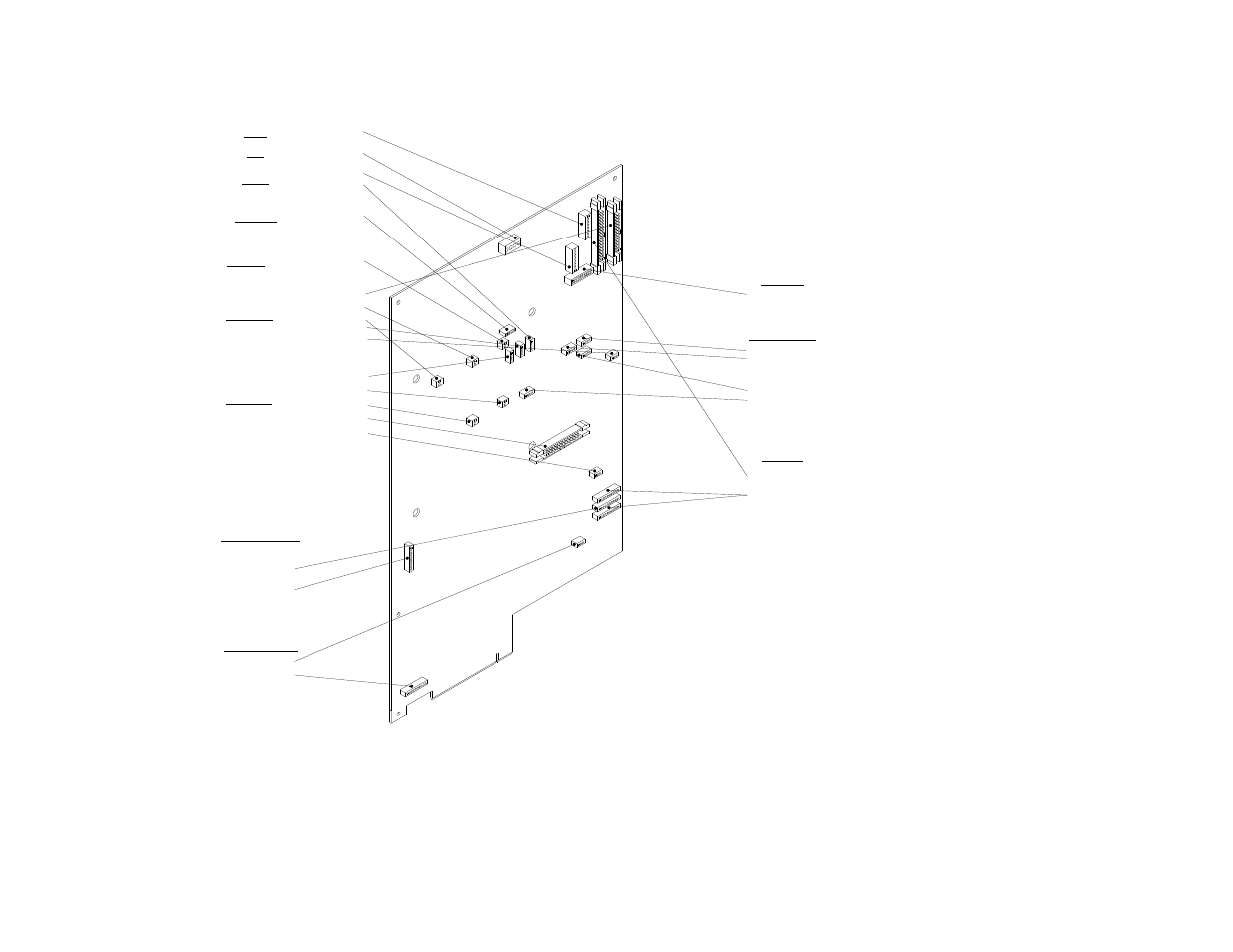

MOTHER BOARD
USER INTERFACE
STATION 1
STATION 2
UNWIND
OPTIONAL FRONT PANEL - J10
MINI FRONT PANEL - J5
MOTHER BOARD AUDIO - J37
MB RESET - J22
S1 HEAD OPEN - J24
S1 INK UNWIND - J16
S1 INK REWIND - J18
S1 PRINT HEAD - J30
S1 CONTRAST POT - J31
MEDIA UNWIND - J17
S2 PRINT HEAD - J32
S2 INK UNWIND - J19
S2 INK REWIND - J20
S2 HEAD OPEN - J25
S2 CONTRAST POT - J33
FEED MOTOR - J13 FEED
KNIFE MOTOR - J15
KNIFE HOME - J27
SPEAKER
KNIFE
24V
SPEAKER - J38
24V - J21
OPTIONS
STACKER
STACKER - J34
SPLICE DETECT - J23 (NOT USED)
TOP REFLECTIVE OPTIONAL HOLE - J26
OPTION TOP CONTRAST / COLOR - J29
OPTION BOTTOM REFLECTIVE - J28
OPTION - J35
VERIFIER - J7 (RFID - J11)
REGISTRATION
