KayakDD – Mezclador Digital de Producción
M4 thread drilling
Thread drillings
for panel fastening
(17.24 inch)
(0.2 inch)
(2.95 inch)
(10.55 inch)
all Dimensions are [mm]

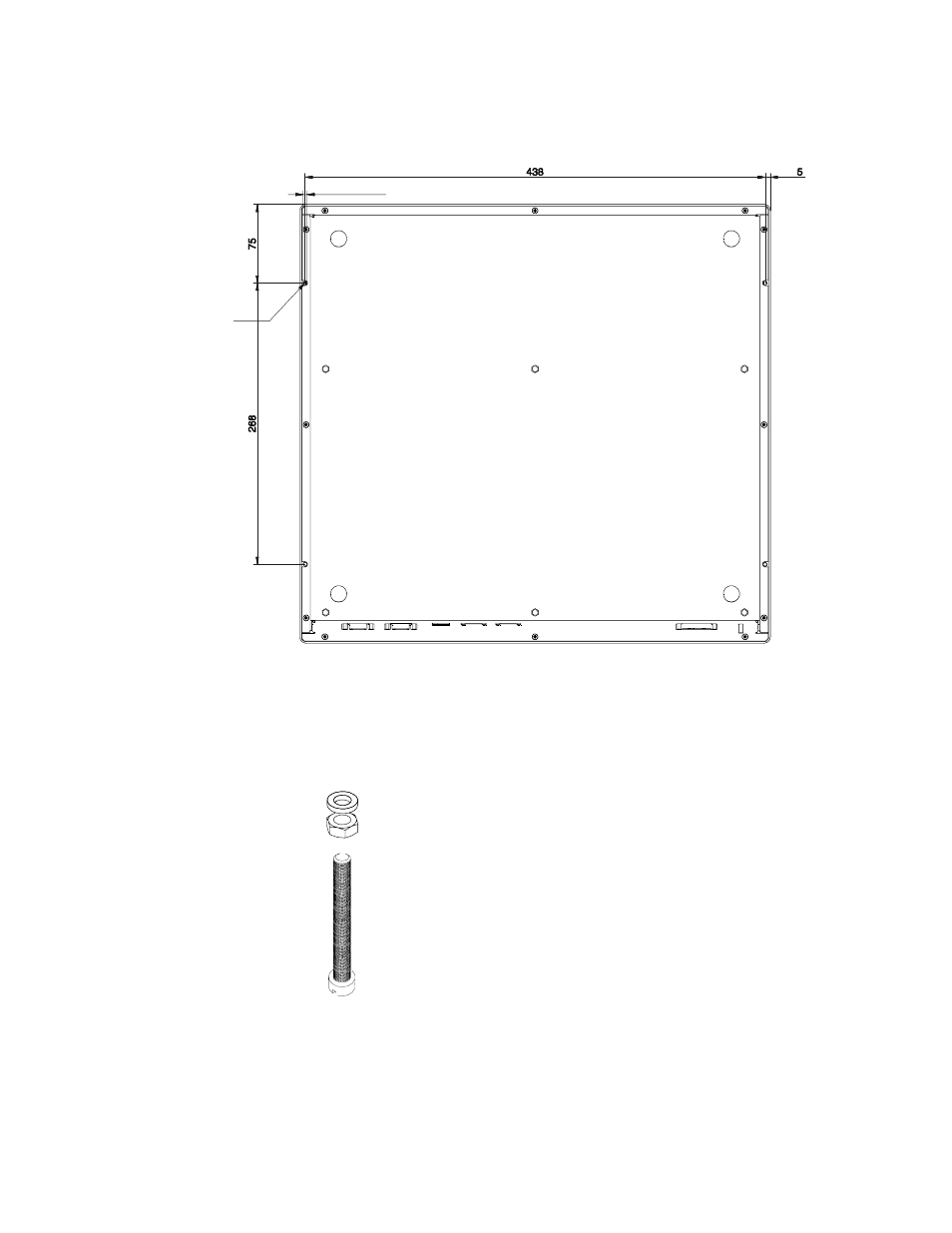

Figura 11 Vista inferior, Medidas de los puntos de Montaje
Fastening screw
Lock nut
Washer
Panel Fastening Procedure:
The length of the screw is dependent on the
thickness of the tabletop! The M4 screw
should be approx. 25 mm of (1 inch) longer
than the thickness of the tabletops.
Screw lock nut completely on the fastening
screw and put on a washer.
Then turn the fastening screw from below
through the drillings in the table in the
thread drillings of the frame.
At least turn the locking nut up to fix the
panel.
Figura 12 Procedimiento de Asegurado del Panel
Manual de Instalación 35
