7.1. Planos técnicos
D12
LEVEL PUSH MENU
MUTE
POWER
A B
ON OFF
OVL GR ISP OVL GR ISP
OUT A
OUT B
INPUT LINK
CH B
ANALOG
DIGITAL
AES/EBU
CH A
ANALOG
SERVICE REMOTE VOLTAGE SEE LABEL
~ 50/60 Hz
1400 W
CAUTION
R ISK O F ELECT RIC SHOCK DO NOT OPEN
www.dbaudio.com
MAINS SUPPLY
RISK OF FIRE - REPLACE FUSE AS MARKED
T10A H / 250 V
FUSE
T10A H / 250 V FUSE
Made in Germany

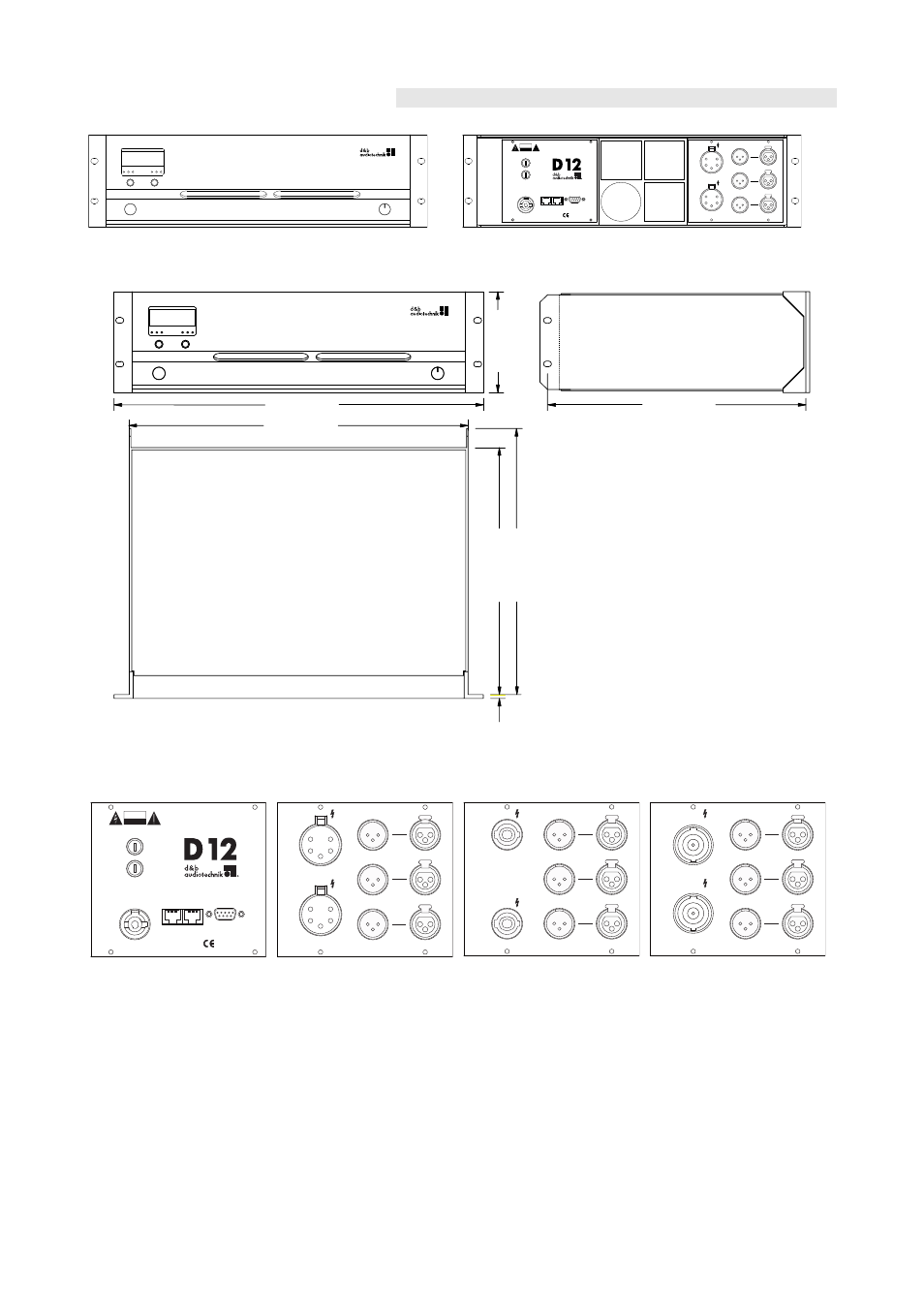

Fig. 23: Vista frontal del D12 Fig. 24: Vista posterior del D12
348 [13.70"] 3
2
8 [1
2
.9
1"]
483 [19.00"]
443 [17.44"]
338 [13.31"]
13
2
[
5
.2
0"]
5 [0.20"]
D12
LEVEL PUSH MENU
MUTE
POWER
A B
ON OFF
OVL GR ISP OVL GR ISP
Fig. 25: Dimensiones de la caja del D12 en mm [pulgadas]
SERVICE REMOTE
VOLTAGE SEE LABEL
~ 50/60 Hz
1400 W
CAUTION
R ISK O F ELECT RIC SHOCK DO NOT OPEN
www.dbaudio.com
MAINS SUPPLY
RISK OF FIRE - REPLACE FUSE AS MARKED
T10A H / 250 V
FUSE
T10A H / 250 V
FUSE
Made in Germany
OUT A
OUT B
INPUT LINK
CH B
ANALOG
DIGITAL
AES/EBU
CH A
ANALOG
INPUT LINK
CH B
ANALOG
DIGITAL
AES/EBU
CH A
ANALOG
OUT A
OUT B
OUT A
OUT B
INPUT LINK
CH B
ANALOG
DIGITAL
AES/EBU
CH A
ANALOG
Fig. 26: Panel eléctrico
del D12 Fig. 27: Panel E/S EP5
del D12 Fig. 28: Panel E/S NL4
del D12 Fig. 29: Panel E/S NL8
del D12
