60

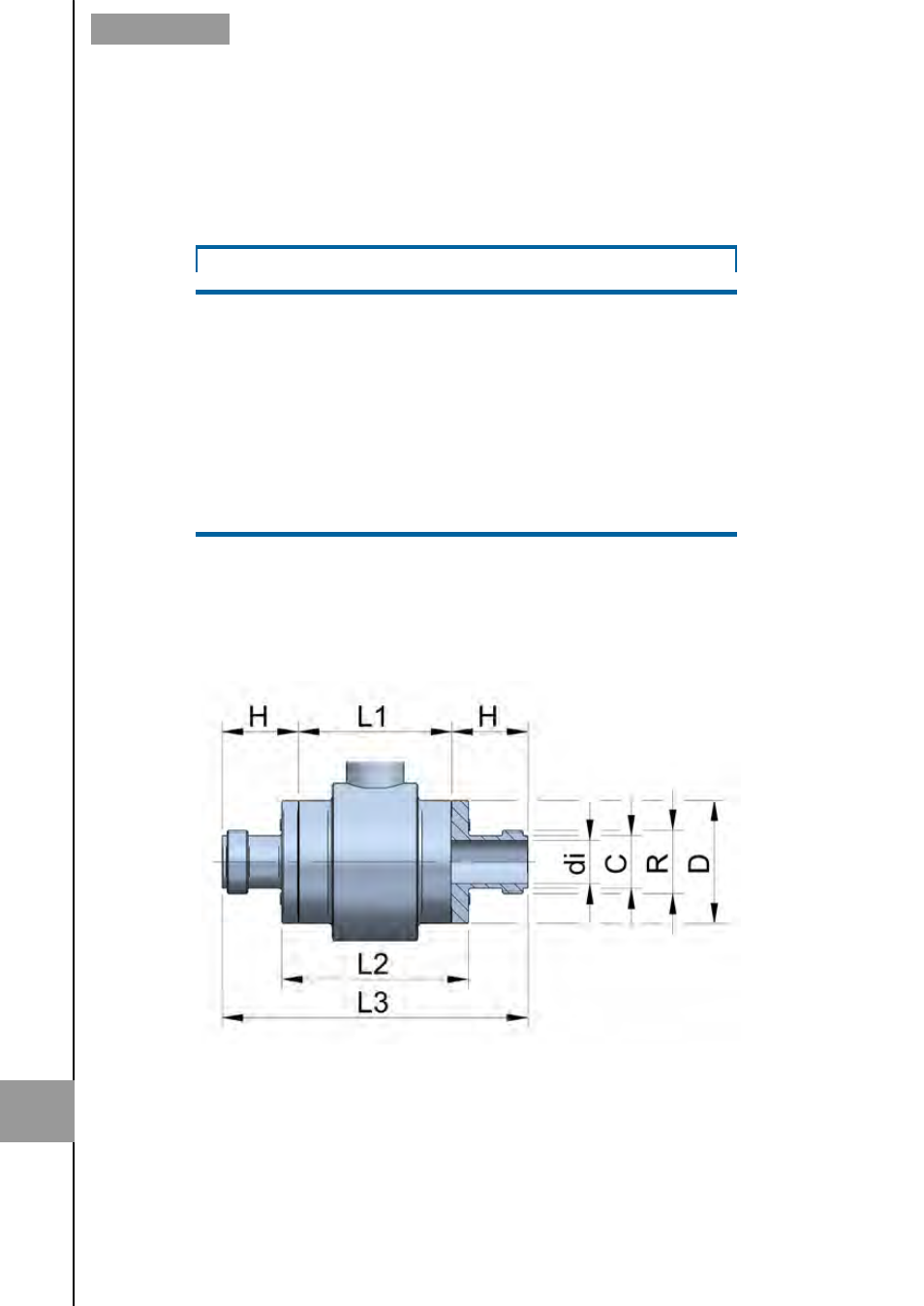

DIMENSIONES
FLOMID-7FX (ISO 2853)
DN di R C D L1 L2 L3 H
10 10.0 Tr 22.89 x 1/8" 15.0 60 104 120 200 48
15 15.2 Tr 29.26 x 1/8" 21.2 65 104 120 200 48
20 19.3 Tr 33.53 x 1/8" 25.4 70 104 120 200 48
25 22.6 Tr 37.13 x 1/8" 29.0 80 110 134 220 55
32 31.3 Tr 45.97 x 1/8" 38.0 90 110 134 220 55
40 35.6 Tr 50.65 x 1/8" 42.5 100 130 154 240 55
50 48.6 Tr 64.16 x 1/8" 56.0 115 130 154 240 55
65 60.3 Tr 77.67 x 1/8" 69.7 145 160 186 280 60
80 72.9 Tr 91.19 x 1/8" 82.3 160 160 186 280 60
100 97.6 Tr 118.21 x 1/8" 108.5 180 204 234 330 63
15
