70
ENGLISH DEUTSCH ESPAÑOL ITALIANO NEDERLANDS SVENSKA

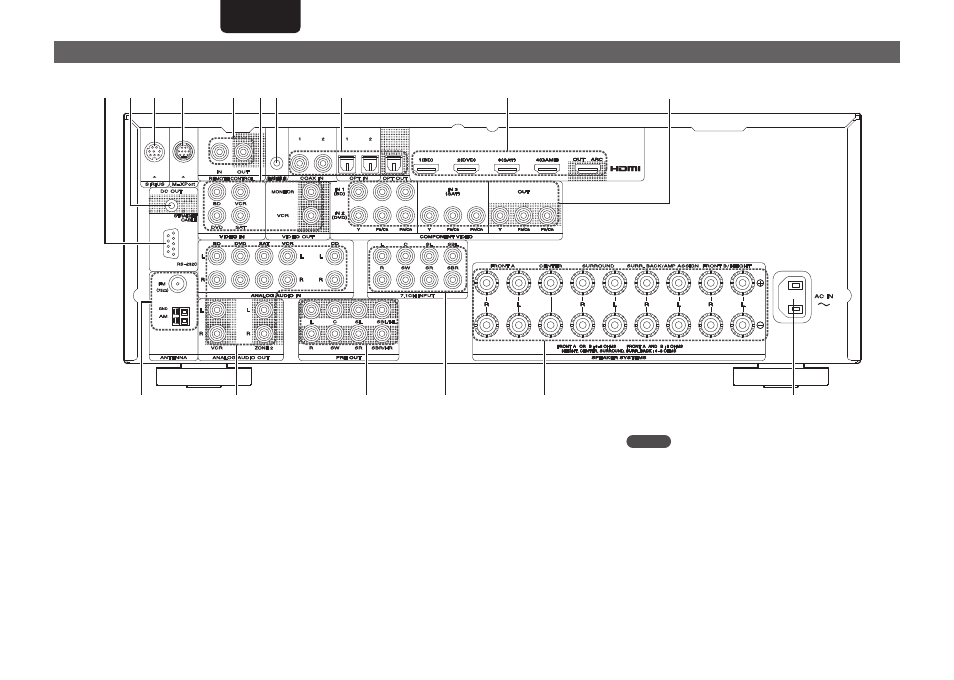

Panel trasero
Consulte la página que se indica entre paréntesis ( ).
q w e r t y
o Q0 Q2 Q1 Q3 Q4 Q6 Q5 i u
q Terminales de antena FM/AM ··············································· (20)
w Conectores de audio analógico ·································(16 – 18, 21)
e Conectores PRE OUT ·············································(5, 21, 34 – 36)
r Conectores 7.1CH INPUT ························································ (21)
t Terminales de altavoces ··············································(5, 34 – 36)
y Toma de AC ··············································································· (5)
u Conectores COMPONENT VIDEO ···································· (16, 17)
i Conectores HDMI ···································································· (15)
o Conectores de audio digital ············································(16 – 18)
Q0 Conector FLASHER IN
Se utiliza cuando se emplea un panel de control o un dispositivo
parecido para controlar esta unidad.
Q1 Conectores VIDEO ····························································(16 – 18)
Q2 Conectores REMOTE CONTROL ············································ (38)
Q3 Conector M-XPort ····························································· (18, 38)
Q4 Conector SIRIUS ······································································ (20)
Q5 Conector DC OUT ···································································· (38)
Q6 Conector RS-232C ··································································· (38)
NOTA
No toque los pines internos de los conectores en el panel trasero.
La descarga electrostática puede ocasionar daños permanentes a la
unidad.
