Panel trasero – Marantz SR7007 Manual del usuario
Página 162
159

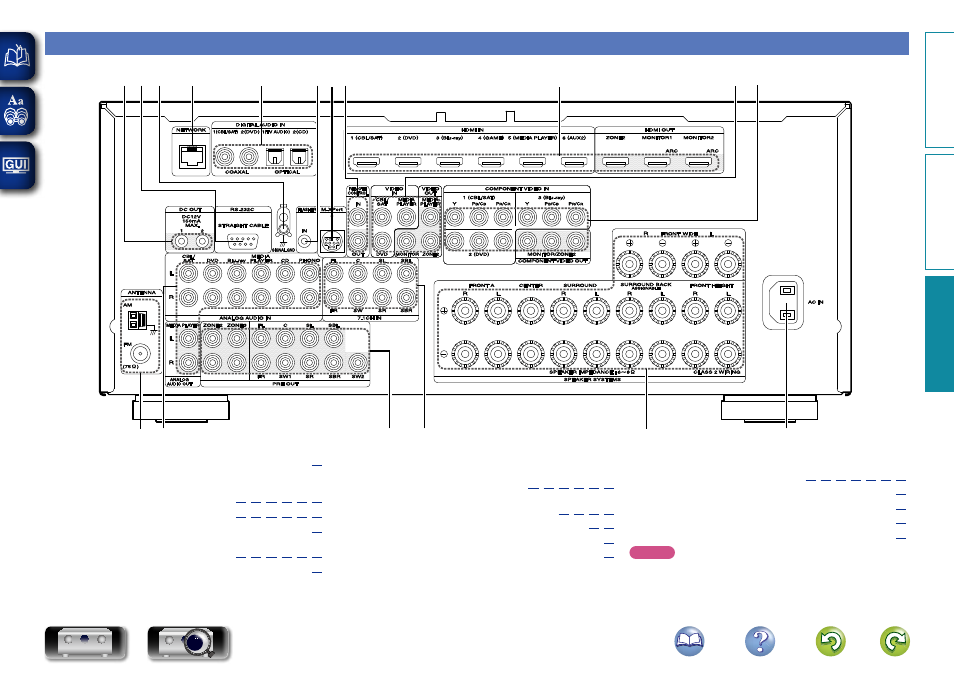

Panel trasero
Consulte la página que se indica entre paréntesis ( ).
o
q
t
e
r
y
i u
Q5
Q0
Q6
Q3
Q4
Q1
Q7
Q2
w
q
Terminales de antena FM/AM (ANTENNA) ·························· (
w
Conectores de audio analógico
(ANALOG AUDIO IN/ANALOG AUDIO OUT)
···································································· (
e
Conectores PRE OUT ································ (
r
Conectores de entrada de 7.1 canales (7.1CH IN) ················ (
t
Terminales de altavoces (SPEAKER SYSTEMS)
···································································· (
y
Entrada de CA (AC IN) ····························································· (
u
Conectores de vídeo por componentes
(COMPONENT VIDEO IN/COMPONENT VIDEO OUT)
···································································· (
)
i
Conectores vídeo
(VIDEO IN/VIDEO OUT) ········································ (
)
o
Conectores HDMI ······························································ (
)
Q0
Conectores REMOTE CONTROL ············································ (
)
Q1
Conector M-XPort ··································································· (
)
Q2
Conector FLASHER IN
Se utiliza al emplear un cuadro de control u otro dispositivo similar
para controlar la unidad.
Q3
Conectores de audio digital
(DIGITAL AUDIO IN) ···························· (
)
Q4
Conector de red (NETWORK) ················································· (
)
Q5
Terminal SIGNAL GND ··························································· (
)
Q6
Conector RC-232C ··································································· (
)
Q7
Conectores DC OUT ································································ (
)
NOTA
No toque los pines internos de los conectores en el panel trasero.
La descarga electrostática puede ocasionar daños permanentes a la
unidad.
