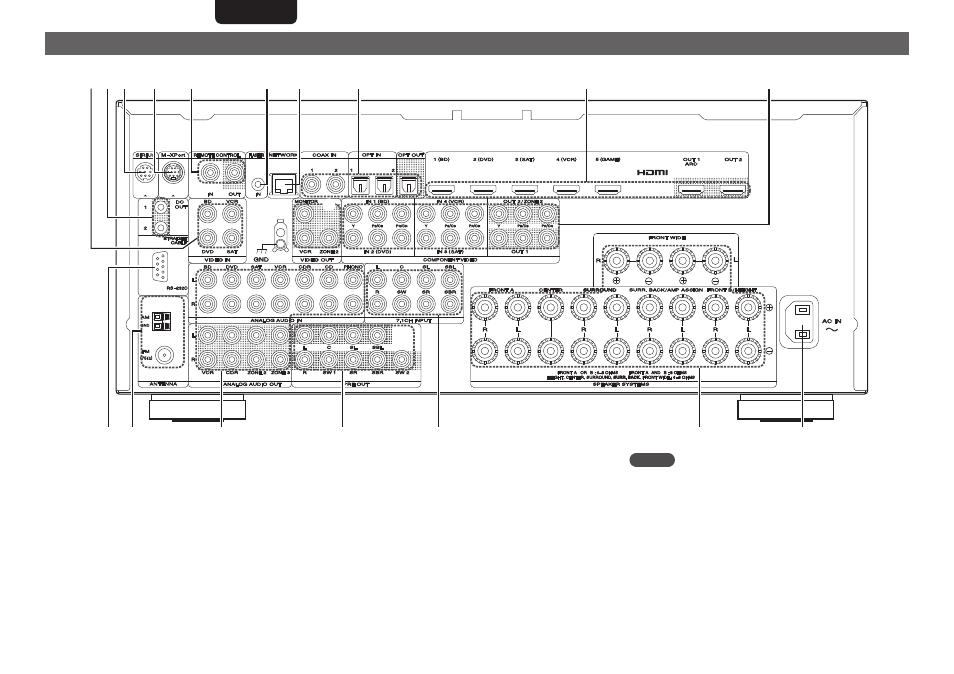

Panel trasero
Consulte la página que se indica entre paréntesis ( ).
Q8
q
w
u
y
r
t
e
Q6
Q4
Q7
i
Q5
Q3
Q2
Q1
Q0
o
Q7
q
Conector RS-232C ··································································· (56)
w
Terminales de antena HD Radio ············································ (22)
e
Conectores de audio analógico ·································(17 – 21, 24)
r
Conectores PRE OUT ·············································(6, 24, 51 – 53)
t
Conectores 7.1CH INPUT ························································ (24)
y
Terminales de altavoces ··············································(6, 51 – 53)
u
Toma de AC (AC IN) ·································································· (6)
i
Conectores COMPONENT VIDEO ···································(17 – 19)
o
Conectores HDMI ···································································· (16)
Q0
Conectores de audio digital ············································(17 – 21)
Q1
Conector NETWORK ······························································· (25)
Q2
Conector FLASHER IN
Se utiliza cuando se emplea un panel de control o un dispositivo
parecido para controlar esta unidad.
Q3
Conectores REMOTE CONTROL ······································ (23, 55)
Q4
Conector M-XPort ··································································· (23)
Q5
Conector SIRIUS ······································································ (22)
Q6
Conectores DC OUT ································································ (56)
Q7
Conectores VIDEO ····························································(17 – 19)
Q8
Terminal SIGNAL GND ··························································· (21)
NOTA
No toque los pines internos de los conectores en el panel trasero.
La descarga electrostática puede ocasionar daños permanentes a la
unidad.
