4
ESPAÑOL
q
Interruptor de potencia (ON/OFF) ·············· (8)
w
Indicador de STANDBY ································ (8)
Indica los distintos estados en los que se puede
encontrar el aparato:
• Encendido “ON” : Desactivado
• Cuando el circuito de protección está
activado:
Rojo (parpadeando) ..................................... (6)
• Standby : Rojo
• Apagado “OFF” : Apagado
e
Botón INPUT SELECTOR ····························· (9)
r
indicadores de entrada ································ (8)
t
Indicador MUTE (MUTE) ······························ (9)
y
Botón de control VOLUME ······················ (8, 9)
u
Sensor de mando a distancia ················ (3, 10)
i
Botón de control BALANCE ····················· (8, 9)
o
Interruptor/indicador SOURCE DIRECT ····· (9)
Q0
Botón de control TREBLE ························ (8, 9)
Q1
Interruptor/Indicador
POWER AMP DIRECT ··································· (9)
Q2
Mando de control MID ····························· (8, 9)
Q3
Interruptor/indicadores SPEAKERS A/B ··· (9)
Q4
Botón de control BASS ···························· (8, 9)
Q5
Conector de auriculares (PHONES) ············ (9)
NOTA
Los mandos de control
i
BALANCE,
Q0
TREBLE,
Q2
MID y
Q4
BASS solo se pueden ajustar si el
conmutador
o
SOURCE DIRECT está apagado.

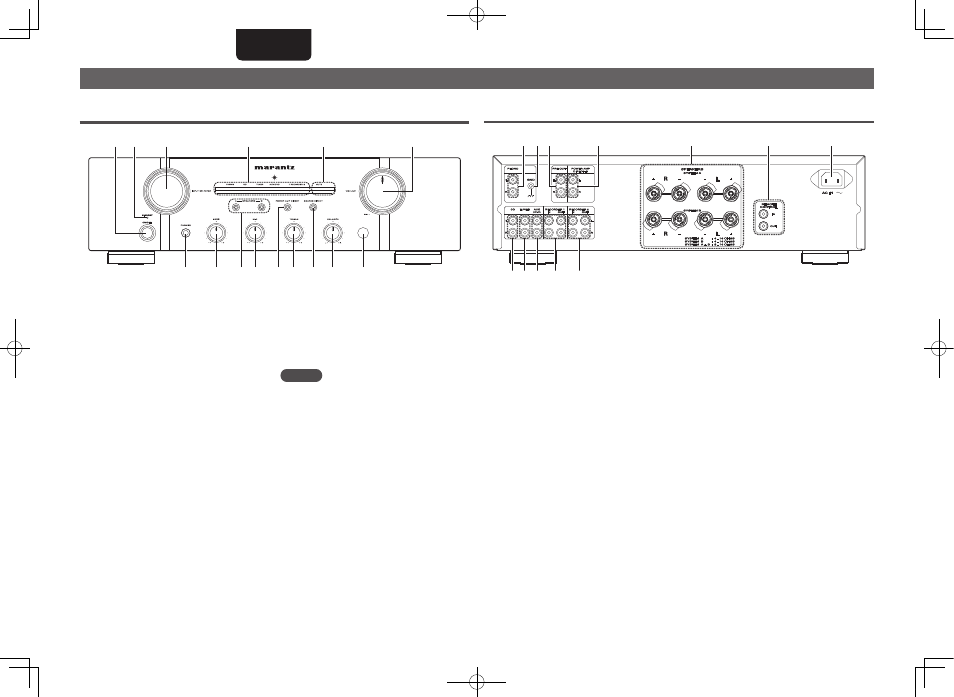

Nombres y funciones de las piezas
Para los botones no explicados aquí, vea la página indicada entre paréntesis ( ).
Panel delantero
t
q
w
e
r
i
Q1 Q0
Q2
Q4
Q5
y
u
o
Q3
q
Conectores de entrada PHONO ················· (7)
w
Terminal PHONO GND ································· (7)
e
Conectores PRE OUT ································· (10)
r
Conectores POWER AMP DIRECT IN ·········· (9)
t
Terminales del sistema de altavoces
(SPEAKERES SYSTEM A/B) ···················· (6, 7)
y
Tomas de entrada/salida
REMOTE CONTROL ··································· (10)
Panel trasero
r
t
y
u
w e
q
i
o
Q0
Q1
Q2
u
Toma de CA (AC IN) ····································· (8)
i
Conectores de entrada/salida
RECORDER 2 (MD/TAPE) ····························· (7)
o
Conectores de entrada/salida
RECORDER 1 (CD-R) ···································· (7)
Q0
Conectores de entrada AUX/DVD ·············· (7)
Q1
Conectores de entrada TUNER ··················· (7)
Q2
Conectores de entrada CD ··························· (7)
