81

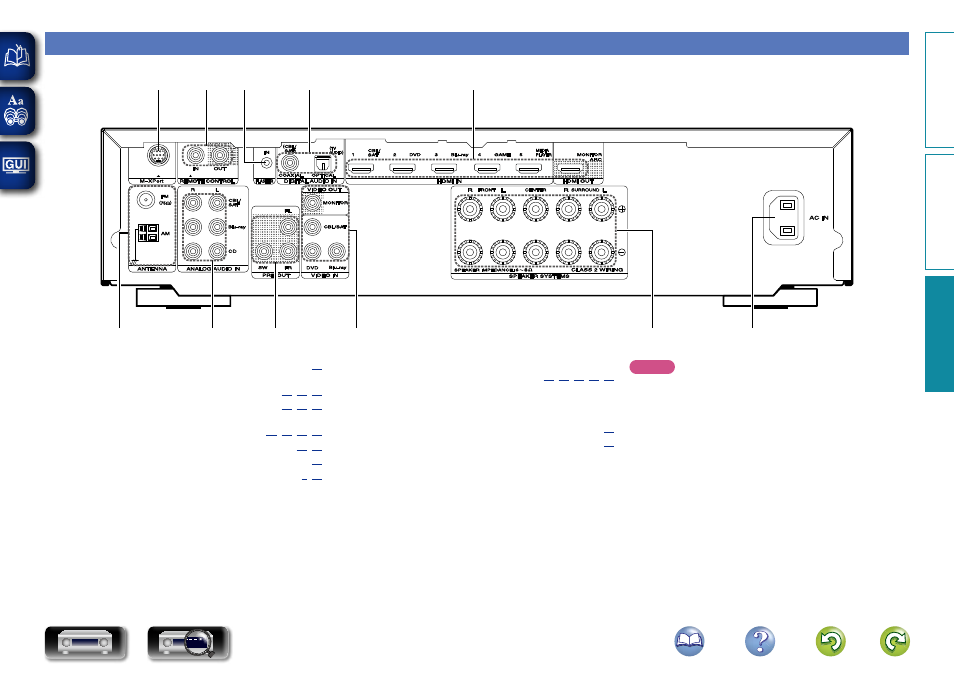

Panel trasero
Consulte la página que se indica entre paréntesis ( ).
q w e r t y
i o Q0 Q1 u
q Terminales de antena FM/AM (ANTENNA) ·························· ( 18 )
w Conectores de audio analógico
(ANALOG AUDIO IN) ··················································· (
14 , 16 , 17 )
e Conectores PRE OUT ·················································· ( 45 , 46 , 47 )
r Conectores vídeo
(VIDEO IN/VIDEO OUT) ········································ ( 13 , 14 , 15 , 16 )
t Terminales de altavoces (SPEAKER SYSTEMS) ············· ( 45 , 46 )
y Entrada de CA (AC IN) ····························································· ( 20 )
u Conectores HDMI ································································ ( 9 , 10 )
i Conectores de audio digital
(DIGITAL AUDIO IN) ········································ ( 13 , 14 , 15 , 16 , 17 )
o Conector FLASHER IN
Se utiliza al emplear un cuadro de control u otro dispositivo similar
para controlar la unidad.
Q0 Conectores REMOTE CONTROL ············································ ( 48 )
Q1 Conector M-XPort ··································································· ( 19 )
NOTA
No toque los pines internos de los conectores en el panel trasero.
La descarga electrostática puede ocasionar daños permanentes a la
unidad.
