Cybex Free Weight 16160 Adjustable Decline Bench Owner’s Manual
Page 10
16160
Adjustable Decline Bench

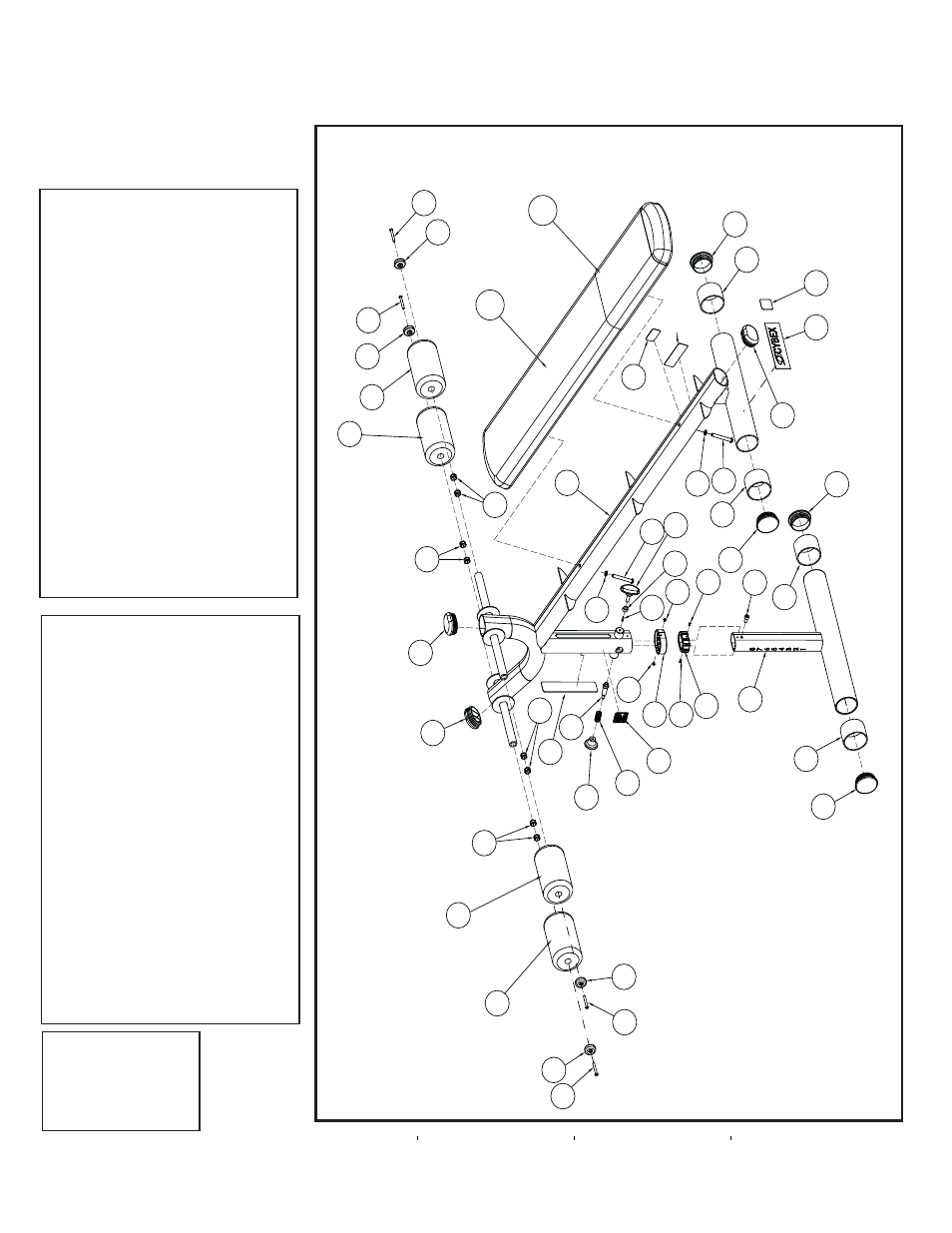

Main Frame
2
13
1
17
17
7
18
8
18
16
5
24
19
21
23
6
10
20
6
23
23
6
9 21 19
11
22
3
6
23
22
22
14
4
14
4
15
15
15
15
4
14
4
14
25
25
25
25
28
27
26B
26A
29
SERIAL
NUMBER DECAL
1
1
08229
P/PIN,DETENT
2
1
11040-440
KNOB
3
1
11040-790
DECAL, MADE IN U.S.A.
4
4
11090-374
END
CAP
5
1
16020-322
PUSH
PUCK
6
4
16030-309
GRIP
2.25
7
1
16060-311
PLASTIC
GUIDE
8
1
16060-315
PLASTIC
GUIDE
9
1
16160-200
WELDMENT,
FRAME
10
1
16160-201
WELDMENT, ADJUSTING TUBE
11
1
3900-433
DECAL, CYBEX 1.00 HOR
12
1
51198 WARRANTY BOOK (NOT SHOWN)
13
1
BS070201
COM SPRING .56 x .66 1.50 LG
14
4
HC620431
BHSCS .250-20 X 2.00
15
8
HF449063
INSERT 3/4 X 1/4-20
ITEM
QTY PART NO. DESCRIPTION
*
Language Key
1-German 2-French 3-Spanish 4-English 6-Japanese 7-Swedish 8-Russian
16
1
HM532812
SHCS .138-6-32 x .50 GR 8
17
2
HM583208
10-32 X .25 LG
18
2
HP286810
SPRING PIN .188 X .37 LG
19
2
JC700434
BHSCS .375-16 X 3.00
20
1
JC702814
SHCS .375-16 X .625
21
2
JS347400
LOCKWASHER, INT TOOTH .375
22
3
PP130007
INSERT, DOMED PLASTIC
23
4
PP280017
INSERT, GLIDE 3.00 DIA x 11 GA
24
1
PP460011
KNOB, OVAL .375-16 x 1.25 MALE
25
4
4800-135
CUSHION, 4 DIA X 7 LG X .875
26A
1
4800-408
BENCH PAD W/WEAR COVER
26B
1
4800-411
WEAR COVER
27
1
5220-364-X
DECAL,
WARNING
28
1
8500-025-X
DECAL,
CAUTION
29
1
CM000244
DECAL,WEIGHT
CAPACITY
ITEM
QTY PART NO. DESCRIPTION
